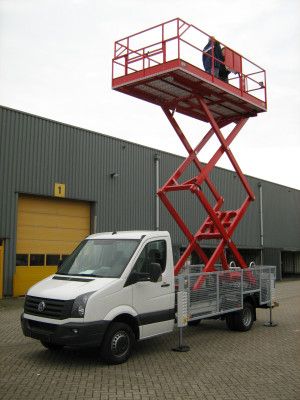

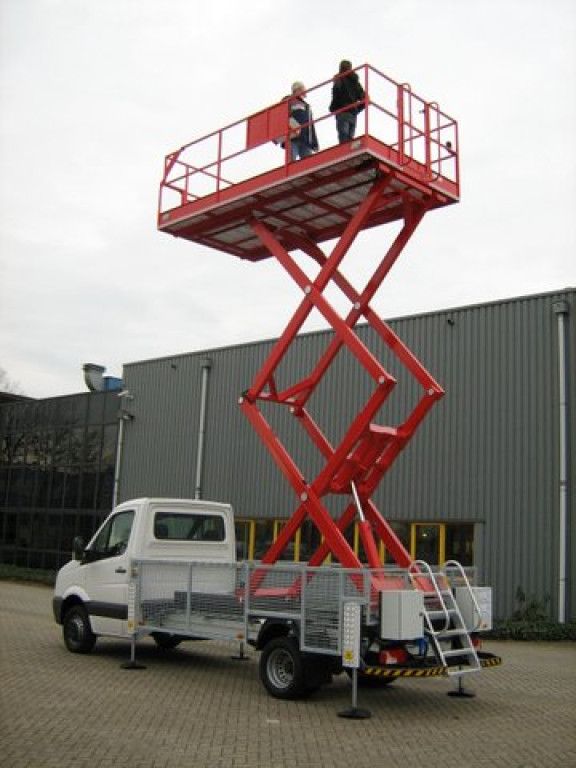

CS8TM Scissor Lift – 8.3 Meter Working Height, Maximum Stability

For intensive maintenance work in tunnels, infrastructure, and industry, the CS8TM from Custers Hydraulica is the ultimate solution. This vehicle-mounted scissor lift combines power, safety, and ease of use in one robust machine.

Why choose the CS8TM?

• Spacious and powerful: Platform of 4.0 x 2.3 m with a load capacity of 400 kg

• Safe & stable: Four hydraulic outriggers and tilt capacity up to 4° in both directions

• User-friendly: PLC control with proportional joystick operation

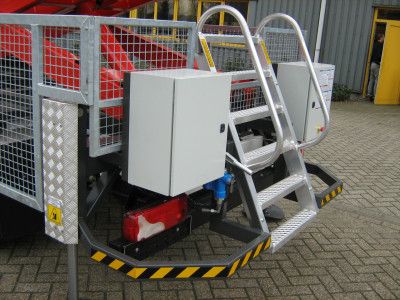

• Practical design: Access via staircase at the rear of the vehicle

• Durable: Robust construction for long-term use

Key Specifications:

• Max. working height*: 8.3 m

• Platform floor height*: 6.3 m

• Platform dimensions: 4.0 x 2.3 m

• Max. load: 400 kg

• Min. vehicle weight: 5 t

• Control: Proportional

• Max. tilt: 4° (transverse & longitudinal)

*Depends on vehicle type, GVW, outrigger construction, platform load, and other factors.
