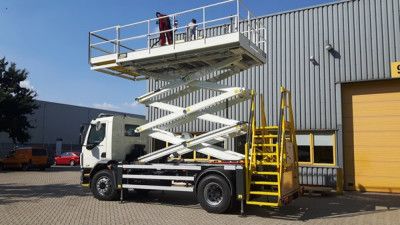

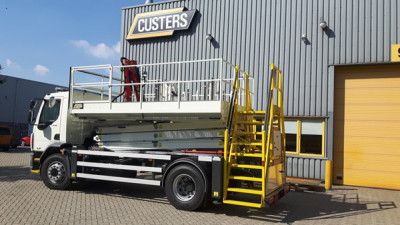

CS12TM Scissor Lift – 12.4 Meter Working Height, Power and Customization for Infrastructure & Aviation

The CS12TM from Custers Hydraulica is the ultimate solution for working at height in the infrastructure and aviation sectors. With a working height of 12.4 meters, a platform capacity of 800 kg, and smart extension options, this scissor lift is designed for maximum efficiency and safety.

Why choose the CS12TM?

• Spacious and powerful: Platform of 4.4 x 2.5 m with a load capacity of 800 kg

• Extra flexibility: Hydraulically extendable platform section of 1.25 m (max. 400 kg)

• Optional crane: For lifting signs and materials at height

• Safe & stable: Four hydraulic outriggers and tilt capacity up to 5°

• User-friendly: PLC control with proportional joystick operation

• Practical design: Access via double staircase at the rear of the vehicle

Key Specifications:

• Max. working height*: 12.4 m

• Platform floor height*: 10.4 m

• Platform dimensions: 4.4 x 2.5 m (+ extension 1.25 m)

• Max. load: 800 kg (+ 400 kg on extension)

• Min. vehicle weight: 15 t

• Control: Proportional

• Max. tilt: 5°

*Depends on vehicle type, GVW, outrigger construction, platform load, and other factors.
