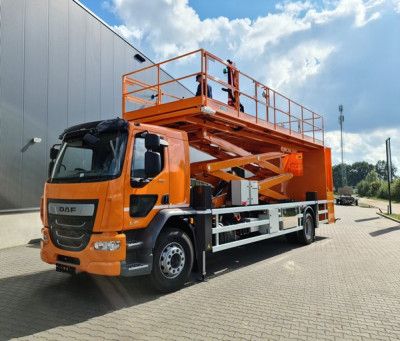

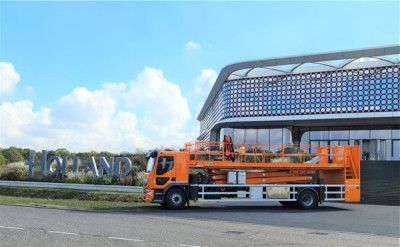

CS10TM Scissor Lift – 10.2 Meter Working Height, Designed for AMI Installations

The CS10TM from Custers Hydraulica has been developed for the most demanding infrastructure projects, such as installing and replacing AMIs (Advanced Motorway Indicators). With a working height of 10.2 meters, a platform capacity of 1,000 kg, and smart features, this scissor lift is the ultimate solution for efficient work at height.

Why choose the CS10TM?

• Specifically designed for AMIs: Spacious platform (8.0 x 2.4 m) with room for 5 AMIs

• Extra flexibility: Front of the platform extendable by 1.25 m (max. 400 kg)

• Hydraulic crane: For lifting AMIs up to 100 kg

• Safe & stable: Four hydraulic outriggers and tilt capacity up to 1°

• User-friendly: PLC control with proportional joystick operation

• Practical design: Access via staircase at the rear of the vehicle

Key Specifications:

• Max. working height*: 10.2 m

• Platform floor height*: 8.2 m

• Platform dimensions: 8.0 x 2.4 m (+ extension 1.25 m)

• Max. load: 1,000 kg (+ 400 kg on extension)

• Min. vehicle weight: 19 t

• Control: Proportional

• Max. tilt: 1°

*Depends on vehicle type, GVW, outrigger construction, platform load, and other factors.
